Aluminium Trefoil Cable Cleats

Features & Benefits

Suitable for indoor and outdoor applications
Manufactured from 5000 series Aluminium with LSF liners
Quick Installation with 1 fixing bolt to secure the 3 cables in place in trefoil formation
Can be used with Triplex Cable Surround to accommodate the twisting of a Triplex cable
Can be used in conjunction with intermediate cable restraints
Tested & certified to BS EN61914:2016 Cable Cleats for Electrical Installations
Short Circuit Tested to 84kA Peak / 40.5kA rms (0.1sec 300mm fixed cleat centres in trefoil formation)
Temperature Range -50 C to 60 C
3 fixing holes ensuring product can be installed to most mounting surfaces

Trefoil cable cleats

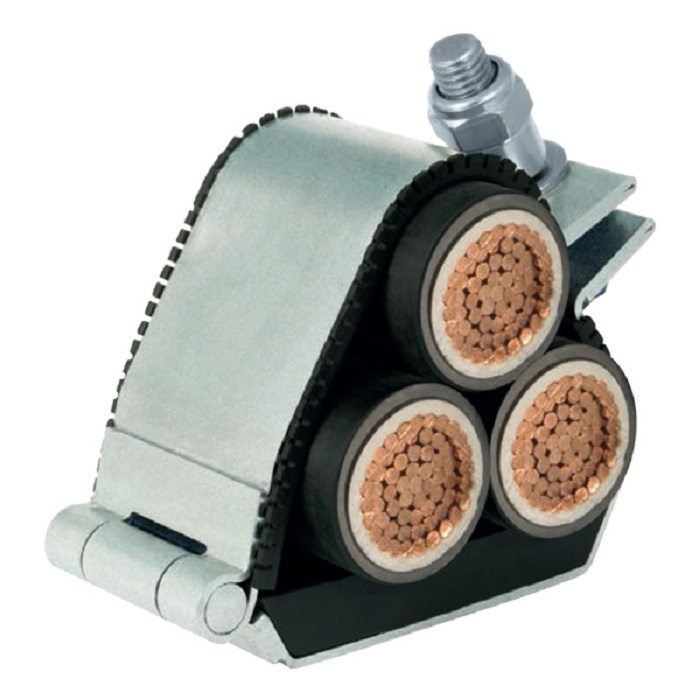

Aluminium Trefoil Cable Cleats - Huron

Premium range of Aluminium cable cleats suitable for single core cables in commercial and light industrial applications on cables systems with low to medium short circuit forces installed in trefoil formation.

Part No	Cable Dia Range mm	Fixing Holes
LDAL019023	19-23	1 x M10 or 2 x M10
LDAL023028	23-28	1 x M10 or 2 x M10
LDAL027032	27-32	1 x M10 or 2 x M10
LDAL030035	30-35	1 x M10 or 2 x M10
LDAL033038	33-38	1 x M10 or 2 x M10
LDAL036042	36-42	1 x M10 or 2 x M10
LDAL040046	40-46	1 x M10 or 2 x M10
LDAL044050	44-50	1 x M10 or 2 x M10
LDAL048055	48-55	1 x M10 or 2 x M10
LDAL051058	51-58	1 x M10 or 2 x M10
LDAL055062	55-62	1 x M10 or 2 x M10
LDAL059066	59-66	1 x M10 or 2 x M10
LDAL063070	63-70	1 x M10 or 2 x M10
LDAL067074	67-74	1 x M10 or 2 x M10
LDAL071078	71-78	1 x M10 or 2 x M10
LDAL074082	74-82	1 x M10 or 2 x M10
LDAL077085	77-85	1 x M10 or 2 x M10
LDAL082088	82-88	1 x M10 or 2 x M10
LDAL088096	88-96	1 x M10 or 2 x M10
LDAL096103	96-103	1 x M10 or 2 x M10
LDAL0103111	103-111	1 x M10 or 2 x M10
LDAL111119	111-119	1 x M10 or 2 x M10
LDAL0119128	119-128	1 x M10 or 2 x M10
